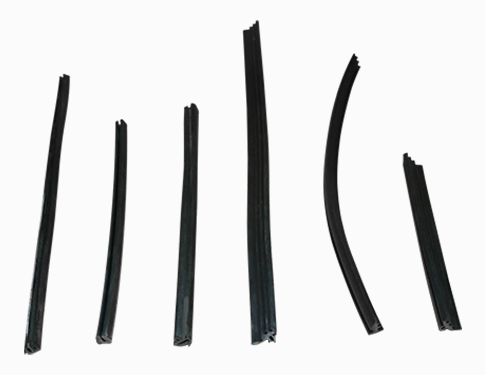

EPDM CO-EX Profile

Features

  • ROHS Compliance
  • REACH Compliance
  • FMVSS 302-Flammability
  • Excellent Ozone Resistance
  • Excellent UV Resistance
  • Resistance Againest Acid and Alkali.
  • Resistance Aginest Heat.

Technical Specification

Properties Value / Value Range (Solid) Value / Value Range (Solid) UOM Standard Applied
HARDNESS 90± 5 65± 5 Shore A ASTM D 2240
TENSILE StrENGTH 70 Min. 70 Min. Kgf/cm2 ASTM D 412
ELONGATION AT BREAK 150 Min. 250 Min. % ASTM D 412
TEAR StrENGTH 15 Min 15 Min kgf/cm ASTM D 0624
APPLICATION TEMPERATURE -40 ~ 120 -40 ~ 120 °C ASTM 1329
AGE RESISTANCE AT 70 OC FOR 70 HRS     °C ASTM-D573
HARDNESS +10'-5 +10'-5 D ASTM D 2240
TENSILE StrENGTH -25 Max. -25 Max. D ASTM D 412
ELONGATION AT BREAK -35 Max. -35 Max. D ASTM D 412
COMPERSSION SET (%) AT 70 OC FOR 22 HRS 50 Max. 50 Max. % ASTM D 395
OZ0NE RESISTANCE NO VISIBLE CRACKS NO VISIBLE CRACKS   ASTM-D1149
O3 CONCENtrATION 50 pphm
TEST TEMPERATURE 40 °C
ELONGATION 20 %
TESTING DURATION 72 Hrs
